Forest Kernel Energy Balancing for Causal Inference
forestBalance estimates average treatment effects (ATE) by combining multivariate random forests with kernel energy balancing. A joint forest model of covariates, treatment, and outcome defines a proximity kernel that characterizes the confounding structure and emphasizes similarity of observations in terms of confounding. The kernel is then used in kernel energy balancing, which minimizes the distributional distance between treatment and control groups. By using the joint forest kernel, this balancing approach emphasizes balance of variables that impact both treatment and outcome. By construction, these balancing weights aim to balance the joint distribution of confounders specifically.
The method is described in:
De, S. and Huling, J.D. (2025). Data adaptive covariate balancing for causal effect estimation for high dimensional data. arXiv:2512.18069.
Installation
# Install from GitHub
devtools::install_github("jaredhuling/forestBalance")Quick start
# library(forestBalance)
# Simulate observational data with nonlinear confounding (true ATE = 0)
set.seed(123)
dat <- simulate_data(n = 500, p = 10, ate = 0)
# Estimate ATE with forest kernel energy balancing
fit <- forest_balance(dat$X, dat$A, dat$Y)
fit
#> Forest Kernel Energy Balancing (cross-fitted)
#> --------------------------------------------------
#> n = 500 (n_treated = 156, n_control = 344)
#> Trees: 1000
#> Estimand: ATE
#> Cross-fitting: 2 folds
#> Solver: cg
#> ATE estimate: -0.0041
#> Fold ATEs: -0.2443, 0.2361
#> ESS: treated = 118/156 (76%) control = 283/344 (82%)
#> --------------------------------------------------
#> Use summary() for covariate balance details.How it works
The method proceeds in three steps:
Joint forest model: A
grf::multi_regression_forestis fit on covariates with the bivariate response . Because the forest splits on both treatment and outcome, the resulting tree structure captures confounding relationships.Proximity kernel: The kernel matrix is defined as the proportion of trees where observations and share a leaf node. This is computed efficiently via a single sparse matrix cross-product.
Kernel energy balancing: Balancing weights are obtained in closed form by solving a linear system derived from the kernel energy distance objective. The weights make the treated and control distributions similar with respect to the forest-defined similarity measure.
Detailed example
Simulating data
simulate_data() generates observational data with nonlinear confounding through a Beta density link:
Fitting the model
fit <- forest_balance(dat$X, dat$A, dat$Y, num.trees = 1000)Print and summary
print() gives a concise overview:
fit
#> Forest Kernel Energy Balancing (cross-fitted)
#> --------------------------------------------------
#> n = 800 (n_treated = 284, n_control = 516)
#> Trees: 1000
#> Estimand: ATE
#> Cross-fitting: 2 folds
#> Solver: direct
#> ATE estimate: 0.0986
#> Fold ATEs: 0.1494, 0.0477
#> ESS: treated = 209/284 (73%) control = 422/516 (82%)
#> --------------------------------------------------
#> Use summary() for covariate balance details.summary() provides a full covariate balance comparison (unweighted vs weighted) with flagged imbalances:
summary(fit)
#> Forest Kernel Energy Balancing
#> ============================================================
#> n = 800 (n_treated = 284, n_control = 516)
#> Trees: 1000
#> Solver: CG (kernel not materialized)
#>
#> ATE estimate: 0.0986
#> ============================================================
#>
#> Covariate Balance (|SMD|)
#> ------------------------------------------------------------
#> Covariate Unweighted Weighted
#> ---------- ------------ ------------
#> X1 0.2467 * 0.0081
#> X2 0.0052 0.0235
#> X3 0.0690 0.0188
#> X4 0.0096 0.0023
#> X5 0.0382 0.0250
#> X6 0.0633 0.0200
#> X7 0.0354 0.0408
#> X8 0.0040 0.0211
#> X9 0.1140 * 0.0162
#> X10 0.1740 * 0.1261 *
#> ---------- ------------ ------------
#> Max |SMD| 0.2467 0.1261
#> (* indicates |SMD| > 0.10)
#>
#> Effective Sample Size
#> ------------------------------------------------------------
#> Treated: 209 / 284 (73%)
#> Control: 422 / 516 (82%)
#>
#> Energy Distance
#> ------------------------------------------------------------
#> Unweighted: 0.0397
#> Weighted: 0.0173
#> ============================================================Balance on nonlinear transformations
Since confounding operates through nonlinear functions of and , we can check balance on transformations of the covariates:
X <- dat$X
X.nl <- cbind(
X[,1]^2, X[,2]^2, X[,5]^2,
X[,1] * X[,2], X[,1] * X[,5],
dbeta(X[,1], 2, 4), dbeta(X[,5], 2, 4)
)
colnames(X.nl) <- c("X1^2", "X2^2", "X5^2", "X1*X2", "X1*X5",
"Beta(X1)", "Beta(X5)")
summary(fit, X.trans = X.nl)
#> Forest Kernel Energy Balancing
#> ============================================================
#> n = 800 (n_treated = 284, n_control = 516)
#> Trees: 1000
#> Solver: CG (kernel not materialized)
#>
#> ATE estimate: 0.0986
#> ============================================================
#>
#> Covariate Balance (|SMD|)
#> ------------------------------------------------------------
#> Covariate Unweighted Weighted
#> ---------- ------------ ------------
#> X1 0.2467 * 0.0081
#> X2 0.0052 0.0235
#> X3 0.0690 0.0188
#> X4 0.0096 0.0023
#> X5 0.0382 0.0250
#> X6 0.0633 0.0200
#> X7 0.0354 0.0408
#> X8 0.0040 0.0211
#> X9 0.1140 * 0.0162
#> X10 0.1740 * 0.1261 *
#> ---------- ------------ ------------
#> Max |SMD| 0.2467 0.1261
#> (* indicates |SMD| > 0.10)
#>
#> Transformed Covariate Balance (|SMD|)
#> ------------------------------------------------------------
#> Transform Unweighted Weighted
#> ---------- ------------ ------------
#> X1^2 0.1769 * 0.0394
#> X2^2 0.0125 0.0079
#> X5^2 0.0453 0.0474
#> X1*X2 0.0397 0.0176
#> X1*X5 0.0407 0.0025
#> Beta(X1) 0.7025 * 0.0353
#> Beta(X5) 0.1256 * 0.0165
#> ---------- ------------ ------------
#> Max |SMD| 0.7025 0.0474
#>
#> Effective Sample Size
#> ------------------------------------------------------------
#> Treated: 209 / 284 (73%)
#> Control: 422 / 516 (82%)
#>
#> Energy Distance
#> ------------------------------------------------------------
#> Unweighted: 0.0397
#> Weighted: 0.0173
#> ============================================================Standalone balance diagnostics
compute_balance() can be used independently with any set of weights:
# Inverse propensity weights (using true propensity scores)
ipw <- ifelse(dat$A == 1, 1 / dat$propensity, 1 / (1 - dat$propensity))
bal_forest <- compute_balance(dat$X, dat$A, fit$weights)
bal_ipw <- compute_balance(dat$X, dat$A, ipw)
c("Forest balance" = round(bal_forest$max_smd, 4),
"IPW" = round(bal_ipw$max_smd, 4))
#> Forest balance IPW
#> 0.1261 0.2063Lower-level interface
For more control, the pipeline can be run step by step:
library(grf)
# 1. Fit the joint forest
forest <- multi_regression_forest(dat$X, scale(cbind(dat$A, dat$Y)),
num.trees = 500)
# 2. Extract leaf node matrix and build kernel
leaf_mat <- get_leaf_node_matrix(forest, dat$X)
K <- leaf_node_kernel(leaf_mat)
c("observations" = nrow(leaf_mat), "trees" = ncol(leaf_mat))
#> observations trees
#> 800 500
c("kernel % nonzero" = round(100 * length(K@x) / prod(dim(K)), 1))
#> kernel % nonzero
#> 24.3
# 3. Compute balancing weights
bal <- kernel_balance(dat$A, K)
ate <- weighted.mean(dat$Y[dat$A == 1], bal$weights[dat$A == 1]) -
weighted.mean(dat$Y[dat$A == 0], bal$weights[dat$A == 0])
c("ATE estimate" = round(ate, 4))
#> ATE estimate
#> 0.3684Simulation study

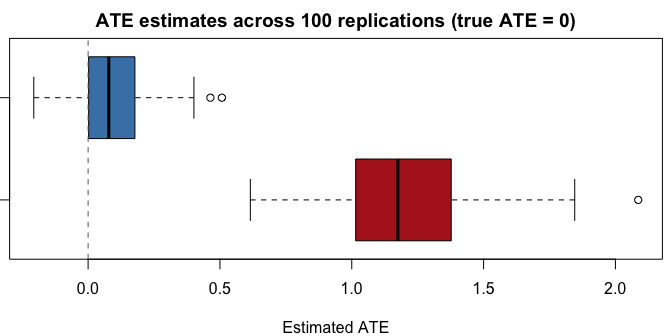

A small simulation comparing the forest balance estimator against the naive (unadjusted) difference in means:
set.seed(1)
nreps <- 100
results <- matrix(NA, nreps, 2, dimnames = list(NULL, c("Naive", "Forest")))
for (r in seq_len(nreps)) {
dat <- simulate_data(n = 500, p = 10, ate = 0)
fit <- forest_balance(dat$X, dat$A, dat$Y, num.trees = 500)
results[r, "Naive"] <- mean(dat$Y[dat$A == 1]) - mean(dat$Y[dat$A == 0])
results[r, "Forest"] <- fit$ate
}| Method | Bias | SD | RMSE |
|---|---|---|---|
| Naive | 1.2944 | 0.2984 | 1.3284 |
| Forest | 0.1086 | 0.1613 | 0.1945 |

Key functions
| Function | Description |
|---|---|
forest_balance() |
High-level: fit forest, build kernel, compute weights, return ATE |
simulate_data() |
Simulate observational data with nonlinear confounding |
compute_balance() |
Covariate balance diagnostics (SMD, ESS, energy distance) |
get_leaf_node_matrix() |
Fast vectorized leaf node extraction from grf forests |
leaf_node_kernel() |
Sparse proximity kernel from leaf node matrix |
forest_kernel() |
Convenience: forest object to kernel in one call |
kernel_balance() |
Closed-form kernel energy balancing weights |
